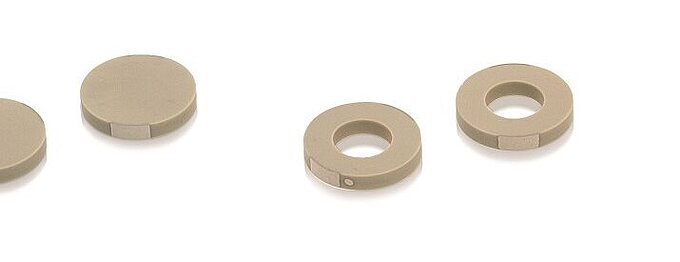

Piezoelectric Disc Transducers

Piezo material matched to the application
Full-surface contact electrodes
Larger quantities available direct from stock

Piezo components made of ferroelectric soft piezo material (PIC255):

  • Sensor technology
  • Actuator engineering
  • Air ultrasound


Piezo components made of ferroelectric hard piezo material (PIC181):

  • High-power ultrasound applications
  • Sonar
  • Flexible, selectable dimensions
  • Piezo material
  • Contacting
  • Polarity
  • Electrical connections
  • Assembling technology
  • Special ambient conditions

Piezoelectric disc, outside diameter (OD) = 25 mm × thickness (TH) = 0.2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o25 t0.2 eAg (000014801)

$20*

Outer diameter (OD) / mm

25
Thickness (TH) / mm0.2
Resonant frequency (thickness) / kHz10000
Resonant frequency (radial) / kHz80
Electrical capacitance / nF35.000
Piezo ceramic typePIC255
Coupling factor for radial oscillation kp0.62
Coupling factor for thickness oscillation kt0.47
Piezoelectric disc, outside diameter (OD) = 3 mm × thickness (TH) = 0.25 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o3 t0.25 eAg (000022817)$10*

Outer diameter (OD) / mm

3

Thickness (TH) / mm

0.25

Resonant frequency (thickness) / kHz

8000

Resonant frequency (radial) / kHz

667

Electrical capacitance / nF

0.338

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47

Piezoelectric disc, outside diameter (OD) = 25 mm × thickness (TH) = 0.2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o25 t0.2 eAg (000052809)

$20*

Outer diameter (OD) / mm

25

Thickness (TH) / mm

0.2

Resonant frequency (thickness) / kHz

10550

Resonant frequency (radial) / kHz

91

Electrical capacitance / nF

24.000

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 25 mm × thickness (TH) = 1 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o25 t1 eAg (000052810)$20*

Outer diameter (OD) / mm

25

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2110

Resonant frequency (radial) / kHz

91

Electrical capacitance / nF

5.362

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 6.5 mm × thickness (TH) = 0.25 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o6.5 t0.25 eAg (000053020)$10*

Outer diameter (OD) / mm

6.5

Thickness (TH) / mm

0.25

Resonant frequency (thickness) / kHz

8000

Resonant frequency (radial) / kHz

308

Electrical capacitance / nF

1.676

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 6.5 mm × thickness (TH) = 1 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o6.5 t1 eAg (000053024)$10*

Outer diameter (OD) / mm

6.5

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2000

Resonant frequency (radial) / kHz

308

Electrical capacitance / nF

0.504

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 6.5 mm × thickness (TH) = 1 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o6.5 t1 eAg (000053025)$10*

Outer diameter (OD) / mm

6.5

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2110

Resonant frequency (radial) / kHz

349

Electrical capacitance / nF

0.346

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 3 mm × thickness (TH) = 2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o3 t2 eAg (000084902)$10*

Outer diameter (OD) / mm

3

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1000

Resonant frequency (radial) / kHz

667

Electrical capacitance / nF

0.056

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 5 mm × thickness (TH) = 2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o5 t2 eAg (000084903)$10*

Outer diameter (OD) / mm

5

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1000

Resonant frequency (radial) / kHz

400

Electrical capacitance / nF

0.152

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 2 mm × thickness (TH) = 1 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o2 t1 eAg (PRYY-0884)$10*

Outer diameter (OD) / mm

2

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2110

Resonant frequency (radial) / kHz

1135

Electrical capacitance / nF

0.036

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 2 mm × thickness (TH) = 1 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o2 t1 eAg (PRYY-0886)$10*

Outer diameter (OD) / mm

2

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2000

Resonant frequency (radial) / kHz

1000

Electrical capacitance / nF

0.053

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 10 mm × thickness (TH) = 0.5 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o10 t0.5 eAg (PRYY+0107)$10*

Outer diameter (OD) / mm

10

Thickness (TH) / mm

0.5

Resonant frequency (thickness) / kHz

4220

Resonant frequency (radial) / kHz

227

Electrical capacitance / nF

1.563

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 10 mm × thickness (TH) = 2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o10 t2 eAg (PRYY+0108)$10*

Outer diameter (OD) / mm

10

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1055

Resonant frequency (radial) / kHz

227

Electrical capacitance / nF

0.435

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 10 mm × thickness (TH) = 0.5 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o10 t0.5 eAg (PRYY+0110)$10*

Outer diameter (OD) / mm

10

Thickness (TH) / mm

0.5

Resonant frequency (thickness) / kHz

4000

Resonant frequency (radial) / kHz

200

Electrical capacitance / nF

2.280

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 10 mm × thickness (TH) = 1 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o10 t1 eAg (PRYY+0111)$10*

Outer diameter (OD) / mm

10

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2000

Resonant frequency (radial) / kHz

200

Electrical capacitance / nF

1.220

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 25 mm × thickness (TH) = 2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o25 t2 eAg (PRYY+0187)$20*

Outer diameter (OD) / mm

25

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1055

Resonant frequency (radial) / kHz

91

Electrical capacitance / nF

2.740

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 25 mm × thickness (TH) = 1 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o25 t1 eAg (PRYY+0189)$20*

Outer diameter (OD) / mm

25

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2000

Resonant frequency (radial) / kHz

80

Electrical capacitance / nF

7.820

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 25 mm × thickness (TH) = 2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o25 t2 eAg (PRYY+0190)$20*

Outer diameter (OD) / mm

25

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1000

Resonant frequency (radial) / kHz

80

Electrical capacitance / nF

3.996

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 16 mm × thickness (TH) = 0.2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o16 t0.2 eAg (PRYY+0321)$20*

Outer diameter (OD) / mm

16

Thickness (TH) / mm

0.2

Resonant frequency (thickness) / kHz

10550

Resonant frequency (radial) / kHz

142

Electrical capacitance / nF

8.850

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 16 mm × thickness (TH) = 1 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o16 t1 eAg (PRYY+0325)$20*

Outer diameter (OD) / mm

16

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2110

Resonant frequency (radial) / kHz

142

Electrical capacitance / nF

2.194

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 16 mm × thickness (TH) = 2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o16 t2 eAg (PRYY+0326)$20*

Outer diameter (OD) / mm

16

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1055

Resonant frequency (radial) / kHz

142

Electrical capacitance / nF

1.114

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 16 mm × thickness (TH) = 0.2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o16 t0.2 eAg (PRYY+0327)$20*

Outer diameter (OD) / mm

16

Thickness (TH) / mm

0.2

Resonant frequency (thickness) / kHz

10000

Resonant frequency (radial) / kHz

125

Electrical capacitance / nF

12.906

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 16 mm × thickness (TH) = 2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o16 t2 eAg (PRYY+0333)$20*

Outer diameter (OD) / mm

16

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1000

Resonant frequency (radial) / kHz

125

Electrical capacitance / nF

1.625

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 20 mm × thickness (TH) = 0.2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o20 t0.2 eAg (PRYY+0344)$20*

Outer diameter (OD) / mm

20

Thickness (TH) / mm

0.2

Resonant frequency (thickness) / kHz

10550

Resonant frequency (radial) / kHz

114

Electrical capacitance / nF

15.291

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 20 mm × thickness (TH) = 1 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o20 t1 eAg (PRYY+0348)$20*

Outer diameter (OD) / mm

20

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2110

Resonant frequency (radial) / kHz

114

Electrical capacitance / nF

3.470

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 20 mm × thickness (TH) = 0.2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o20 t0.2 eAg (PRYY+0349)$20*

Outer diameter (OD) / mm

20

Thickness (TH) / mm

0.2

Resonant frequency (thickness) / kHz

10000

Resonant frequency (radial) / kHz

100

Electrical capacitance / nF

22.300

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 20 mm × thickness (TH) = 2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o20 t2 eAg (PRYY+0354)$20*

Outer diameter (OD) / mm

20

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1000

Resonant frequency (radial) / kHz

100

Electrical capacitance / nF

2.560

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 5 mm × thickness (TH) = 0.25 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o5 t0.25 eAg (PRYY+0392)$10*

Outer diameter (OD) / mm

5

Thickness (TH) / mm

0.25

Resonant frequency (thickness) / kHz

8440

Resonant frequency (radial) / kHz

454

Electrical capacitance / nF

0.680

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 5 mm × thickness (TH) = 0.25 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o5 t0.25 eAg (PRYY+0398)$10*

Outer diameter (OD) / mm

5

Thickness (TH) / mm

0.25

Resonant frequency (thickness) / kHz

8000

Resonant frequency (radial) / kHz

400

Electrical capacitance / nF

0.992

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47
Piezoelectric disc, outside diameter (OD) = 10 mm × thickness (TH) = 1 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o10 t1 eAg (PRYY+0442)$10*

Outer diameter (OD) / mm

10

Thickness (TH) / mm

1

Resonant frequency (thickness) / kHz

2110

Resonant frequency (radial) / kHz

227

Electrical capacitance / nF

0.837

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 3 mm × thickness (TH) = 2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o3 t2 eAg (PRYY+0850)$10*

Outer diameter (OD) / mm

3

Thickness (TH) / mm

2

Resonant frequency (thickness) / kHz

1055

Resonant frequency (radial) / kHz

757

Electrical capacitance / nF

0.038

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 3 mm × thickness (TH) = 0.25 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o3 t0.25 eAg (PRYY+0853)$10*

Outer diameter (OD) / mm

3

Thickness (TH) / mm

0.25

Resonant frequency (thickness) / kHz

8440

Resonant frequency (radial) / kHz

757

Electrical capacitance / nF

0.232

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.56

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 10 mm × thickness (TH) = 0.2 mm, piezo material PIC181, electrode Ag screen printed/ disc c181 o10 t0.2 eAg (PRYY+1113)$10*

Outer diameter (OD) / mm

10

Thickness (TH) / mm

0.2

Resonant frequency (thickness) / kHz

10550

Resonant frequency (radial) / kHz

227

Electrical capacitance / nF

3.593

Piezo ceramic type

PIC181

Coupling factor for radial oscillation kp

0.5

Coupling factor for thickness oscillation kt

0.46
Piezoelectric disc, outside diameter (OD) = 10 mm × thickness (TH) = 0.2 mm, piezo material PIC255, electrode Ag screen printed/ disc c255 o10 t0.2 eAg (PRYY+1119)$10*

Outer diameter (OD) / mm

10

Thickness (TH) / mm

0.2

Resonant frequency (thickness) / kHz

10000

Resonant frequency (radial) / kHz

200

Electrical capacitance / nF

5.240

Piezo ceramic type

PIC255

Coupling factor for radial oscillation kp

0.62

Coupling factor for thickness oscillation kt

0.47

Related Products and Additional Resources
